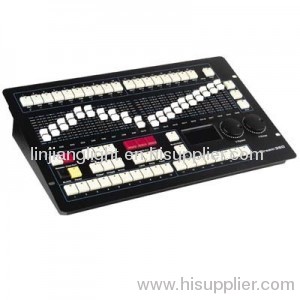

360CH DMX console,StageLight control system Control up to 18 fixtures, each with up to 20channels.
20 sliders on the front panel for easy and fast controlof all the channels in the fixture.
Big size LCD display with language selection(Chinese/English).
54 scenes for direct output and simultaneouslyrunning.
36 chases run simultaneously. Speed and slope of eachchase are adjustable either separately or together.
Up to 200 steps in each chase; totally 1200 steps can bestored.
18 groups of chases run simultaneously, each with up to36 steps, each step with up to 36 chases; fade time and speed of each stepadjustable;
3-pin DMX out × 2;
Photoelectric isolated data output, resistant to 3KVDC,preventing the controller from being damaged by the electric leakage from thefixture.
All the pan/tilt channels in different fixtures can beassigned to the function wheels.
The slope channel when a chase is running can beconfigured, in which the pan/tilt slope is fixed and the gobo/color channels canbe set as without slope to avoid unexpected effect.
Built-in microphone and audio input for soundactivation.
Built-in switching power supply, suitable for allcountries
